Model J and K Furnaces
Built for demanding production environments, Camco’s Model J and K furnaces combine generous working capacity with practical, operator-friendly design. Their lift-off chamber configuration allows parts to be loaded at a convenient, ergonomic height before the entire chamber is smoothly lowered into position from above.
Instead of maintenance-intensive hydraulics, Camco furnaces use clean, quiet electric linear-actuator hoists for safe and reliable chamber movement. With a wide range of configurations, chamber sizes, and temperature ratings available, the Model J and K platforms can be tailored to meet a variety of processing requirements.
The Model J is Camco’s largest standard furnace platform. It features an 18-inch-diameter working zone and is available in:
• 24 and 48 inch heating-zone heights rated to 1200°C
• 24 inch heating-zone height rated to 1500°C (High Vacuum Only)
• 30 inch heating-zone height rated to 1600°C

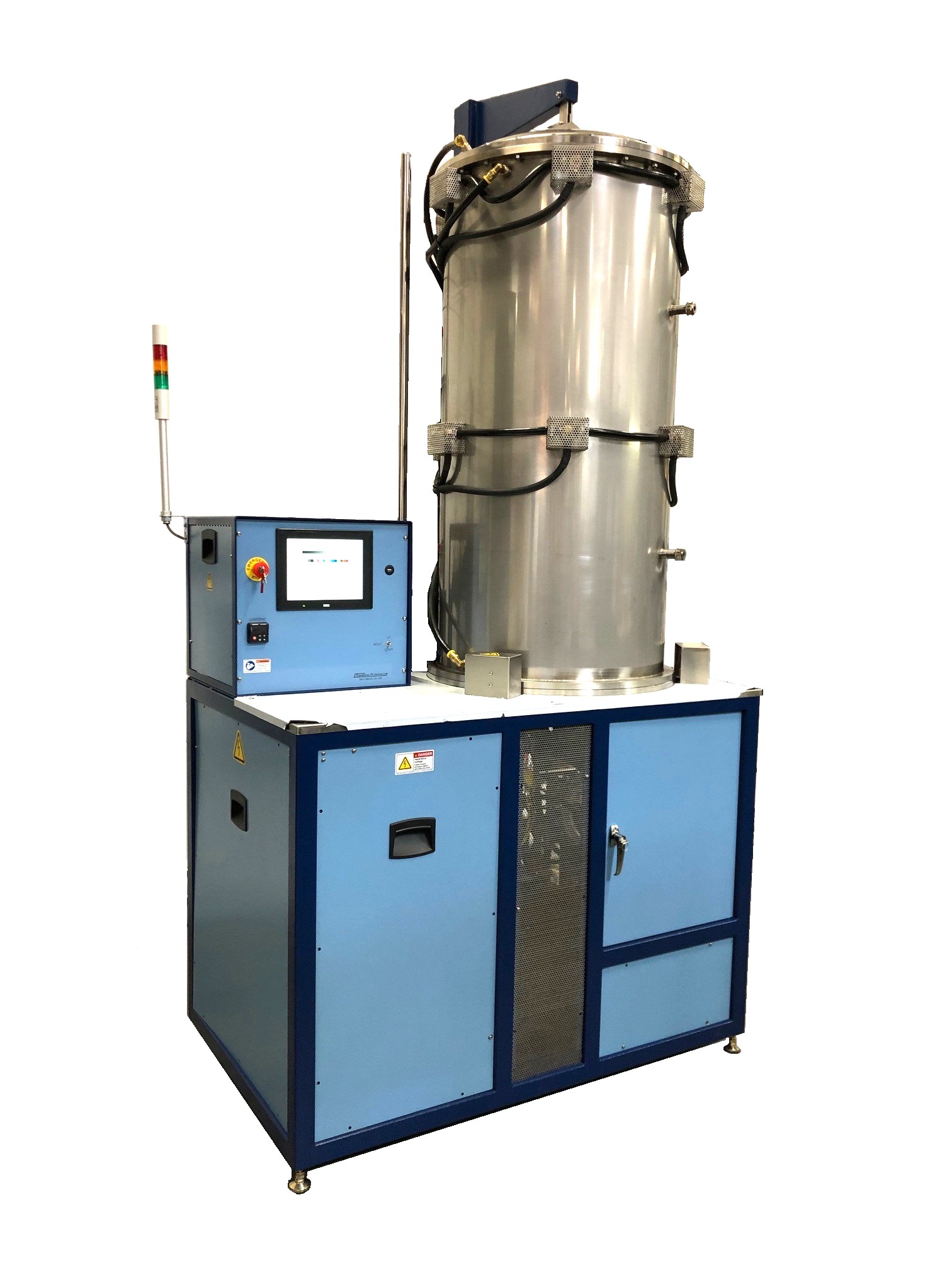

For applications requiring additional diameter, the Model K provides a larger 20-inch-diameter hot zone. It is available in:
• 24 and 48 inch heating-zone heights rated to 1200°C
• 30 inch heating-zone height rated to 1400°C
Whether your priority is ergonomic loading, increased production capacity, or high-temperature performance, the Model J and K furnaces deliver flexible, dependable processing in a thoughtfully engineered package.
J Hydrogen
- Hydrogen / Inert Gas Operation
- Exceeds NFPA86 standards for Hydrogen safety
- An industry-standard for thick-film ceramic metalizing at production scale (J-ATM-1600)
- Click temperature rating below for Spec Sheets:
J Vacuum
- Standard high-vacuum turbomolecular pump
- 10-7 Torr Pressure in ideal conditions
- Completely automatic and simple to maintain
- Click temperature rating below for Spec Sheets:
J Combination
- Both Hydrogen and High Vacuum Operations
- Our most versatile furnace for those who require it
- Does the work of multiple furnaces all in one convenient piece of equipment
- Example K-COM Information Packet: K-COM-12-20x48 Info Pack
- Contact us for more information on other furnace sizes or specifications
- Read more about Combination Furnaces
K Furnaces
- Most Model J furnaces can be made as a Model K for larger diameter parts, up to 1400° C maximum.
- Our largest volume furnace for those who require it
- Contact us for more information or questions
